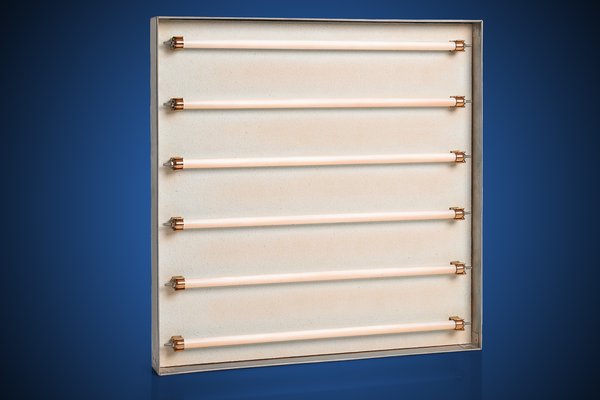

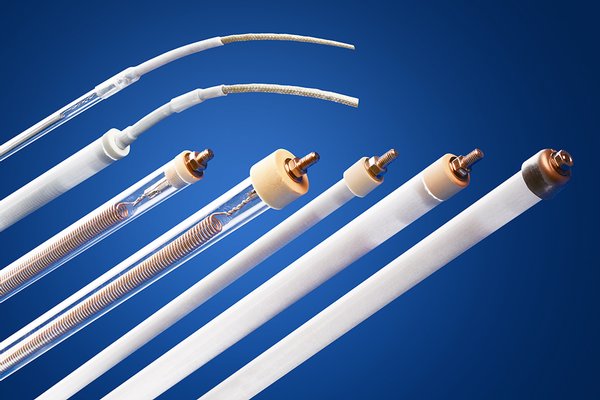

Quartz infrared emitters and Radiant panels

Back to products
Quote request Print
  • Features
  • Applications

Features

We manufacture radiant panels and quartz made to order per your specifications. Volton manufacture and repairs the quartz infrared emitters by replacing the resistance.

These provide an instant heat and a quick cool down. They possess an excellent uniform emission that permits to treat small distances that need to be worked on. Quartz is very resistance to a wet environment and simple to use.

  • Kanthal A-1 heated radiant lead coiled and installed in a quartz tube
  • Mid-infrared wavelength ? 1.4 � 3�m
  • Outside diameter ? 3/8", 1/2", 5/8"
  • Maximum length up to 102"
  • Horizontal mounting
  • Ceramic end caps
  • Post-terminal or Lead exit
  • Voltage: 120V to 600V

Applications

  • Thermoforming
  • Folds of polymer leaf
  • Drying and cooking of industrial products
  • Drying of food products
